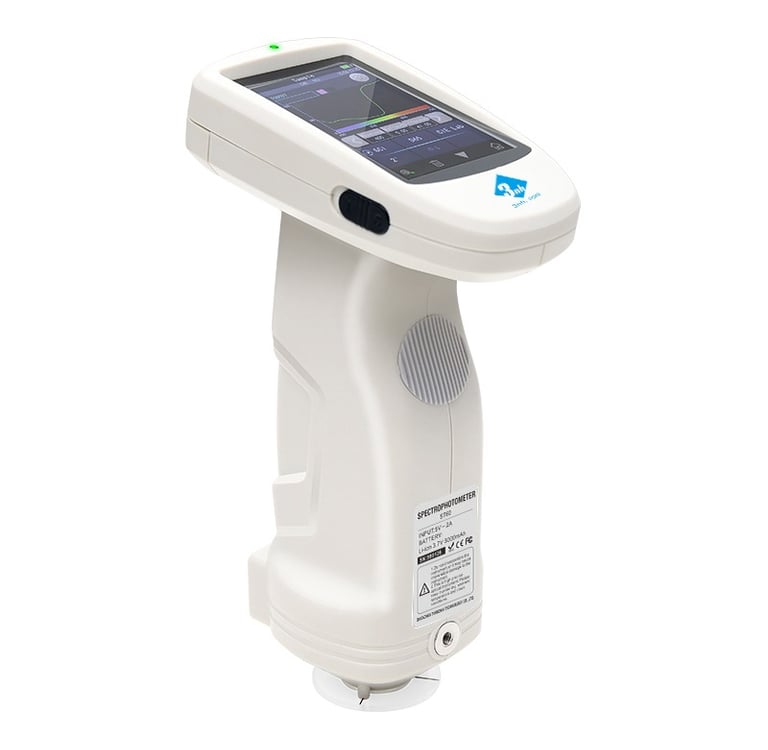

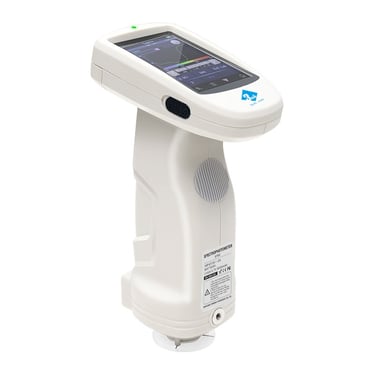

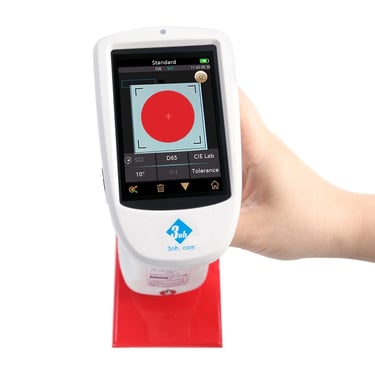

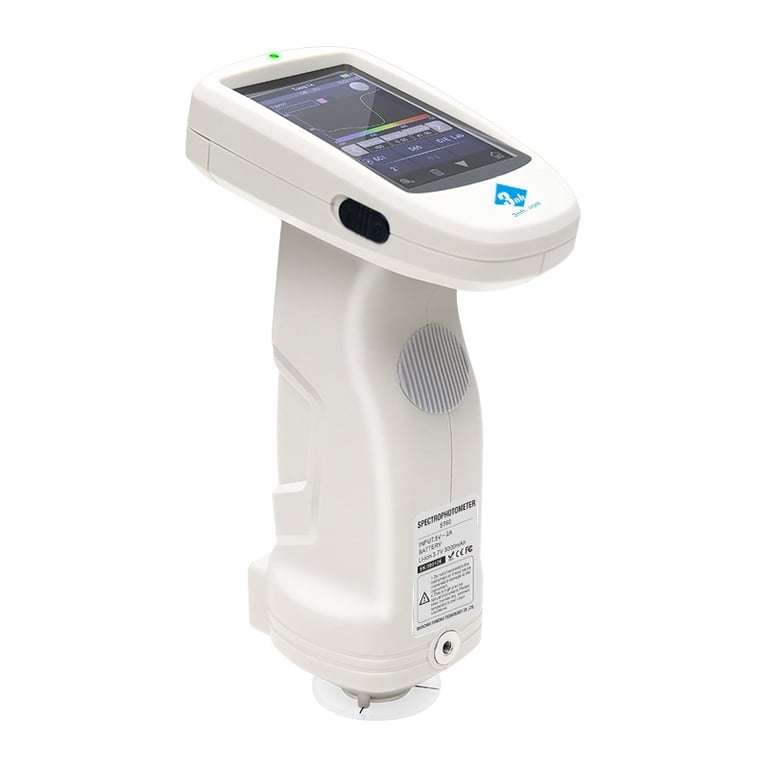

ST60

Spectrophotometer

Product Features

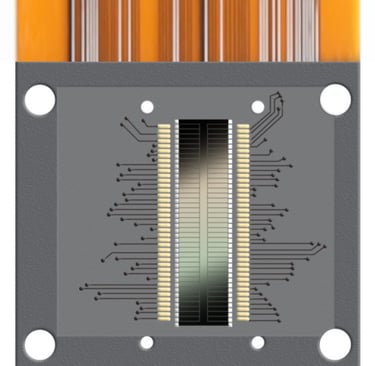

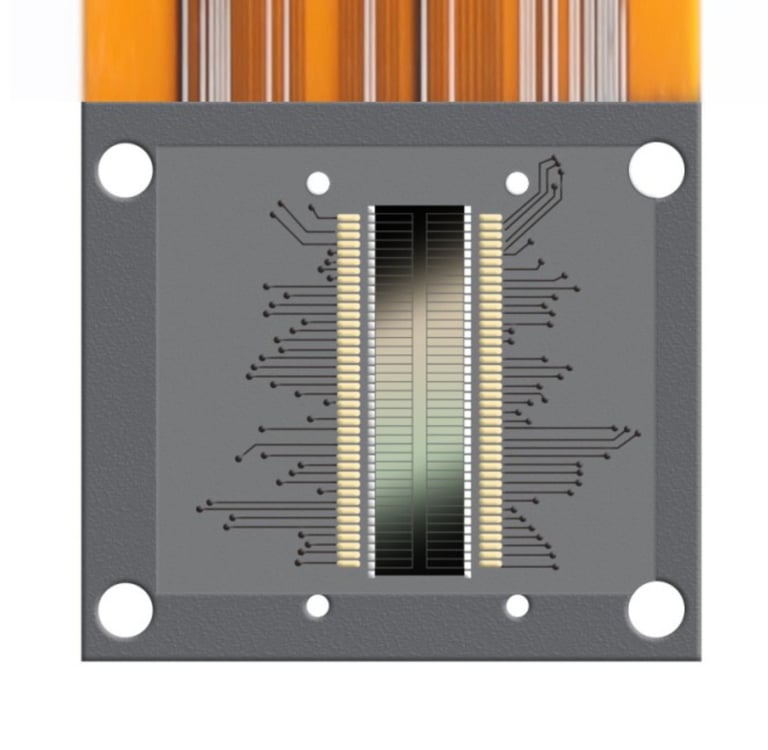

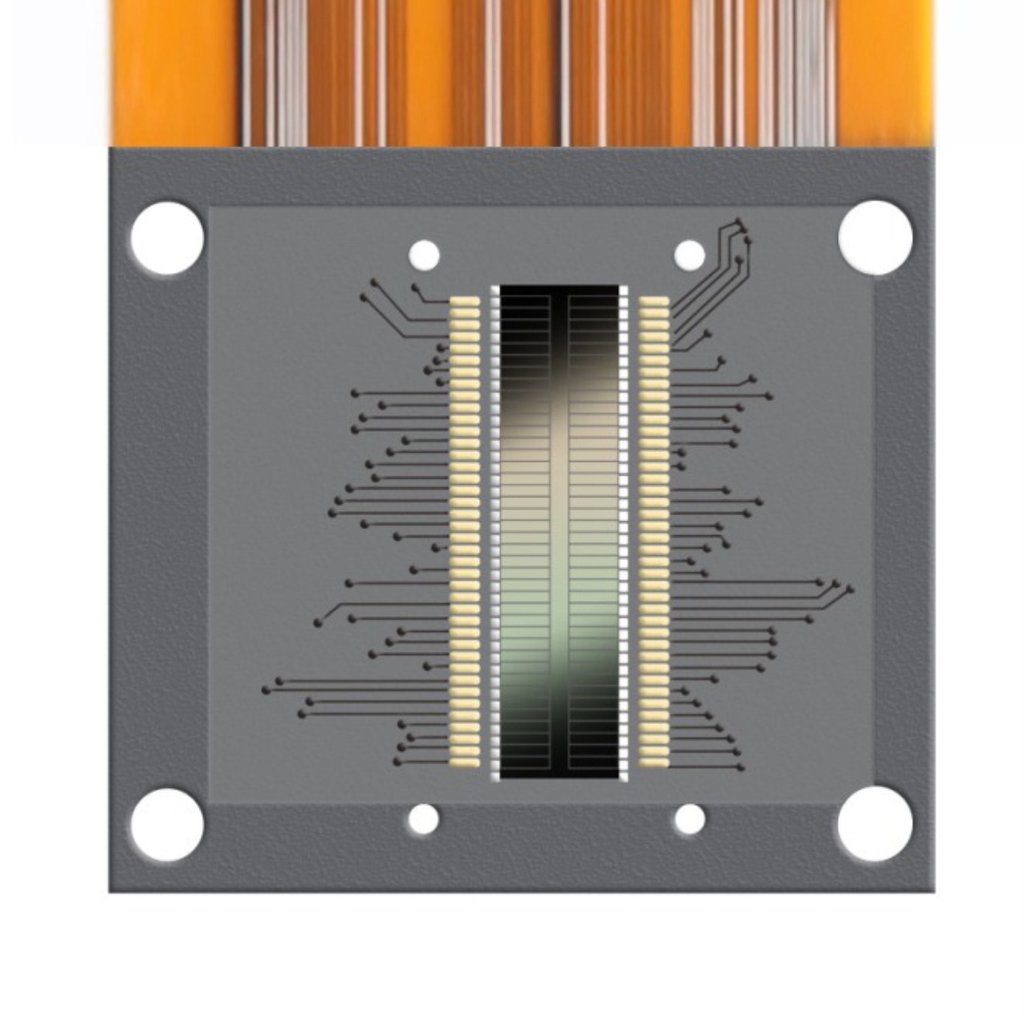

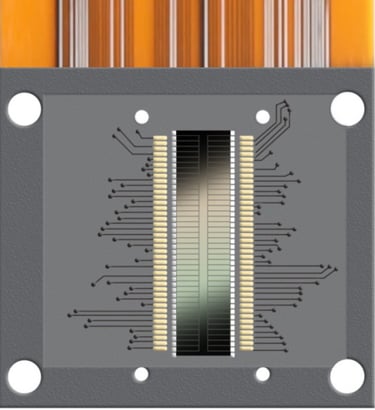

  • Large Area photodiode array (26 groups of dual columns) sensors

Larger area double 26 array sensor, strong light will not be saturated, weak light sensitivity is higher and wider spectral response range, to ensure the instrument measurement speed, accuracy, stability and consistency, independent core technology, and international standards. The same platform is fully compatible

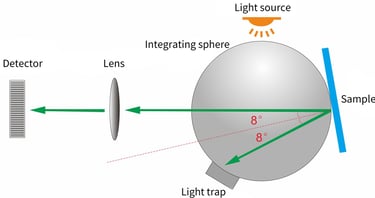

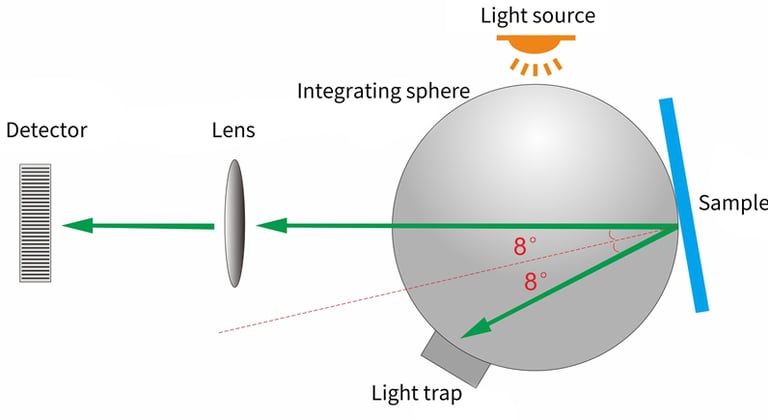

  • Adopt the international D/8 structure, support SCI+SCE simultaneous fast measurement

Spectrophotometer ST60 adopts D/8 illumination observation conditions and SCI / SCE (Including specular reflection/exclusive specular reflection) synthesis technology, which is widely applicable in the world, and supports SCI + SCE simultaneous rapid measurement, and the test time is about 1.5 seconds.

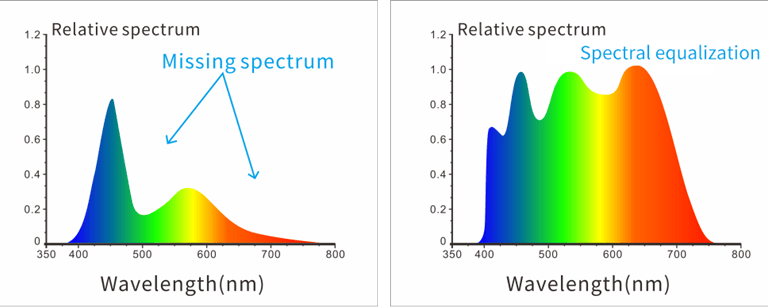

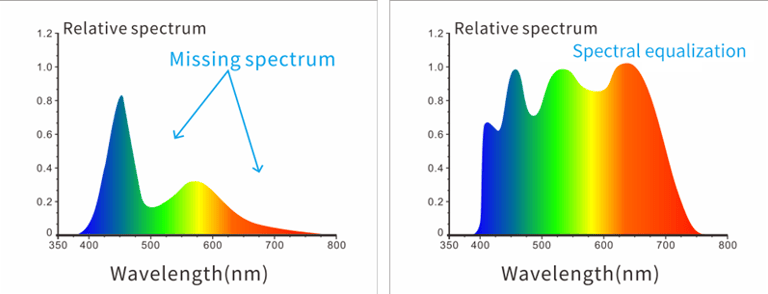

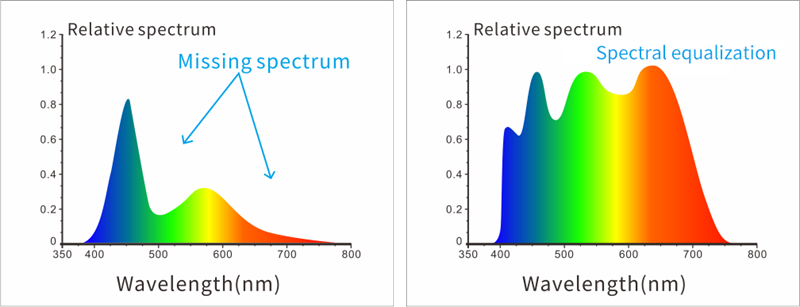

  • Combined full spectrum LED light source and UV light source

The use of 360-700nm full-spectrum LED light source ensures sufficient spectral distribution in the visible light range, avoids the lack of spectrum in specific bands, strong light will not be saturated, weak light is more sensitive, and fluorescent samples can also be easily measured.

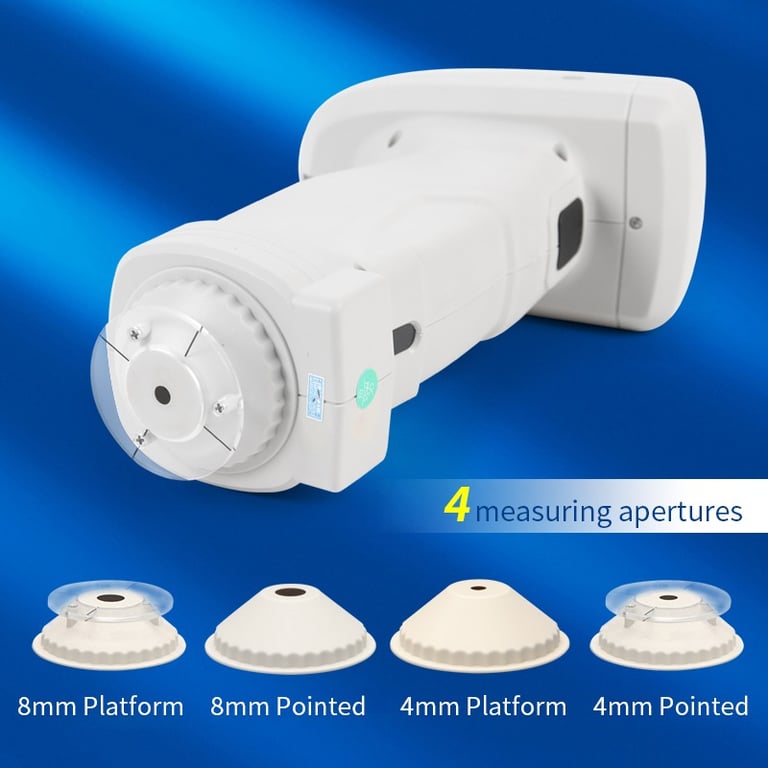

  • Equipped with four measuring calibers. Large to meet sampe measurement needs

Spectrophotometer ST60 comes standard with four measuring calibers : ɸ 8mm platform diameter, ɸ8mm tip diameter, ɸ4mm platform diameter, and ɸ4mm tip diameter, which meets the measurement needs of most special samples

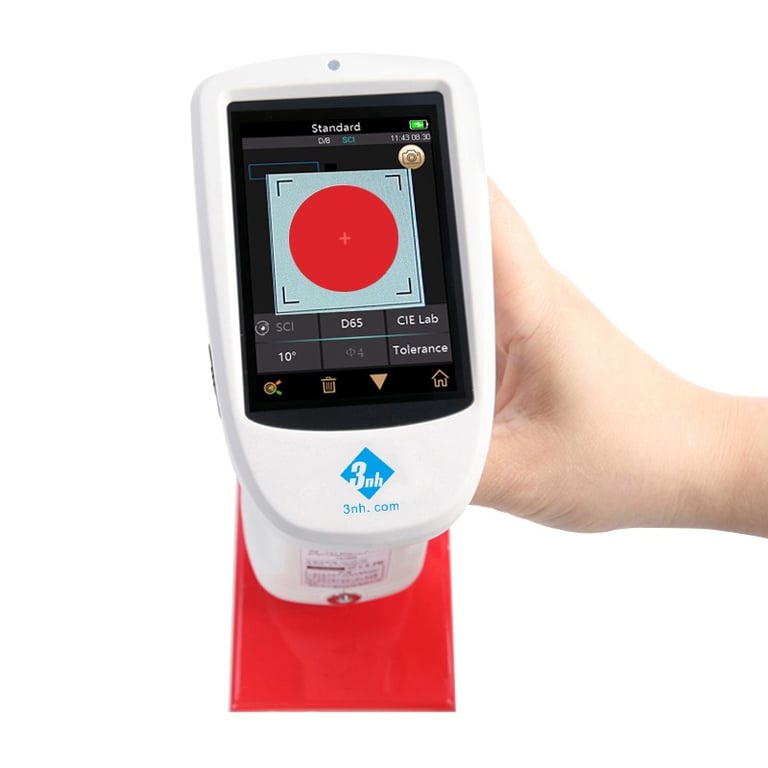

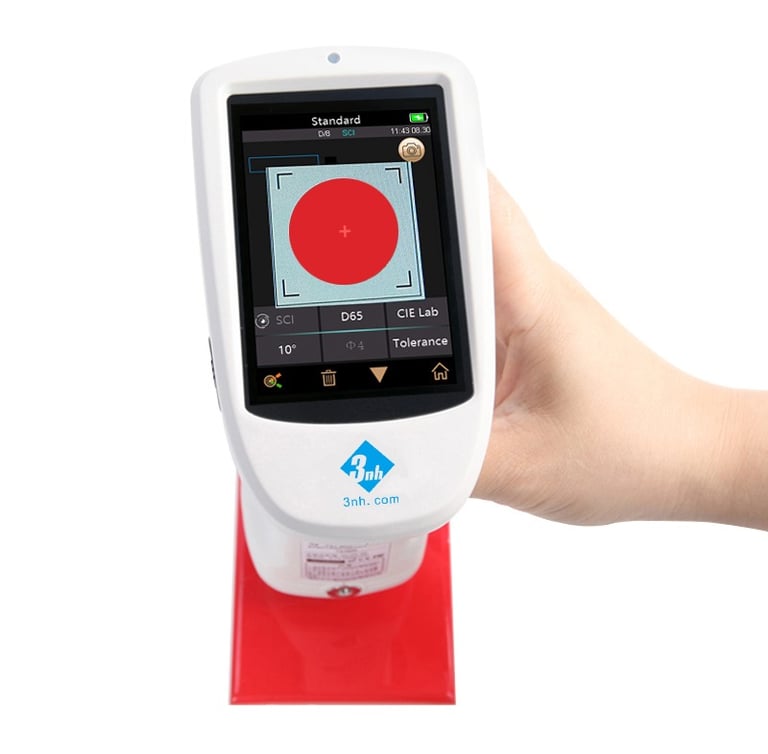

  • The camera framing and positioning can clearly observe the measured area

The spectrometer ST60 has a built-in camera for viewing and positioning. Through the real-time viewing of the camera, it can accurately determine whether the measured part of the object is the center of the targer, wich improves the measurement efficiency and accuracy.

  • Non-contact automatic calibration, professional imported whiteboard, more wear-resistant, dirt-resistant and stable.

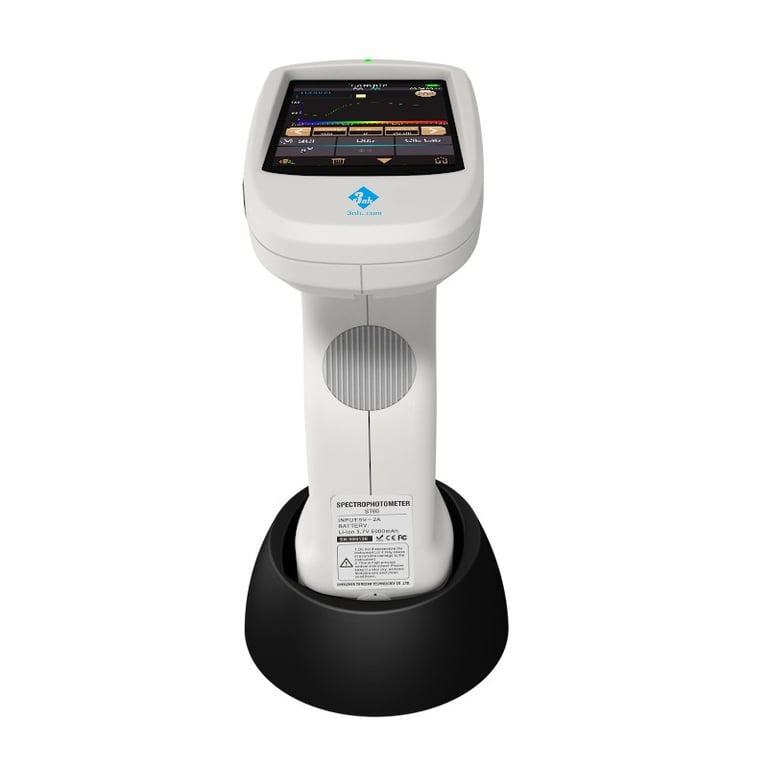

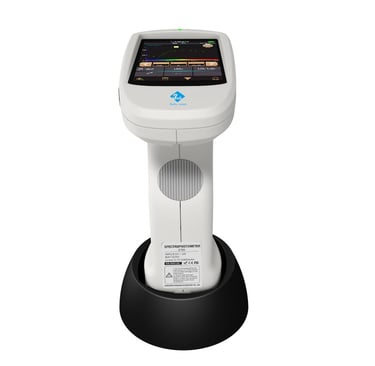

  • Place the base with peace of mind to ensure that the whiteboard is not dirty.

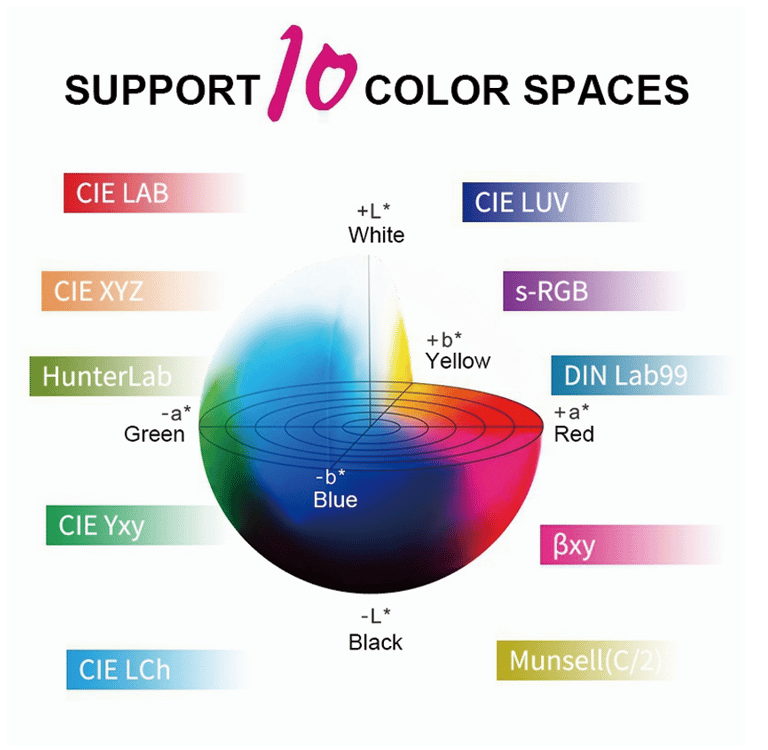

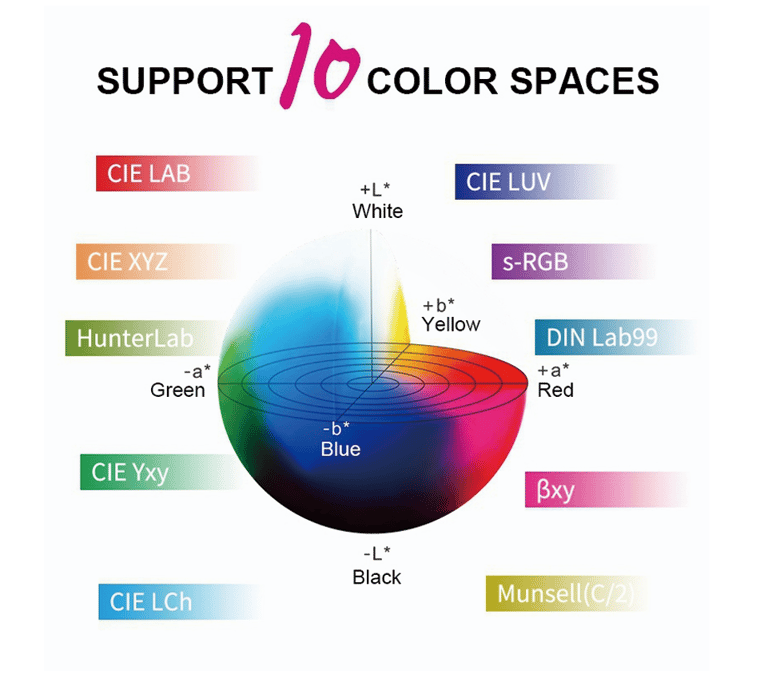

  • Provide 10 color measurement spaces and 41 observation light sources

Offer CIE LAB, XYZ, Yxy, LCh, CIE LUV, S-RGB, HunterLab, βxy, DIN Lab99, Munsell(C/2) color spaces, and D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30), B, U35, NBF, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2, LED-C2, LED-C3, LED-C5. It also can costumized light source (A total of 41 of light source, Partially realize through the PC software / APP software), and can meet the special measurement requirements under different measurement conditions.

  • Rich chromaticity index

Spectrophotometer ST60 not only provides the commonly used color measurement, but also provide spectral reflectance, WI(ASTM E313, CIE/ISO, AATCC, Hunter, TaubeBergerStensby), YI (ASTM D1925, ASTM 313), Metarism index of Mt, Staining Fastness, Color Fastness, Color Strength, Opacity, 8 degree gloss, 555 tone clasification, Carbon (My,dM), color density CMYK (A,T,E,M), Tint, Munsel chroma index (part of the function is realized by PC software).

  • Excellent instrument errors and repeatability

Ensure the consistency of measurement data of multiple devices, which can be used for color matching and accurate color transfer.

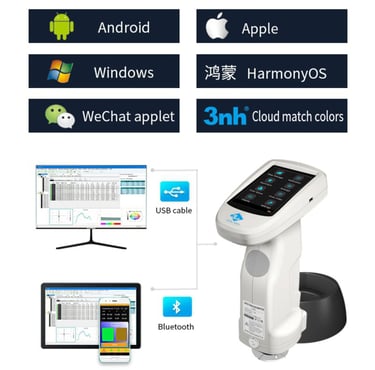

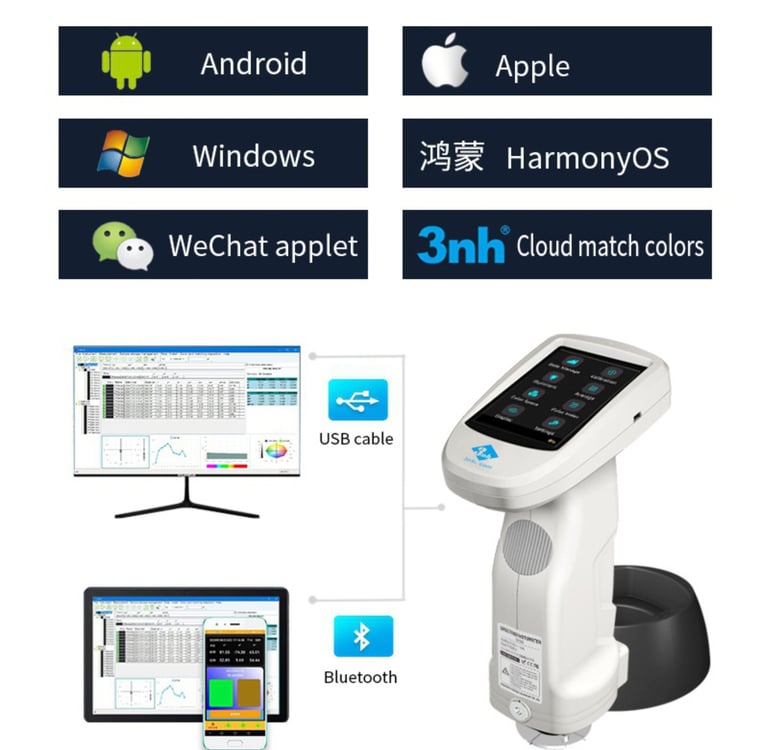

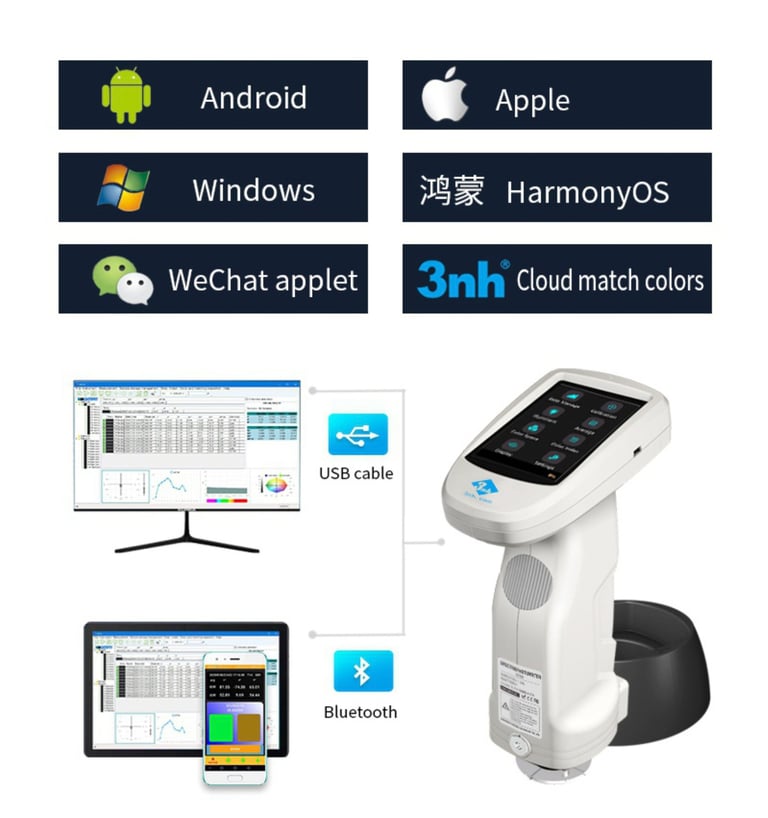

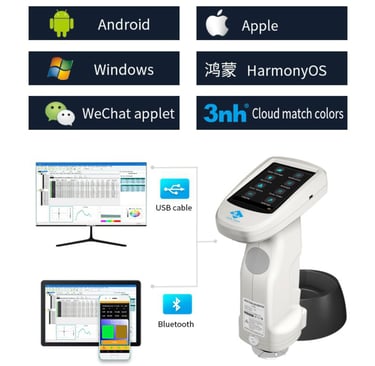

  • Support Huawei Hongmeng, Android, IOS, WeChat applet, Windows program

Optional accessories

The instrument is equipped with a variety of optional accessories, such as : micro printer, powder test box, multifunctional test assembly, etc. to meet more sample measurement needs of costumers.

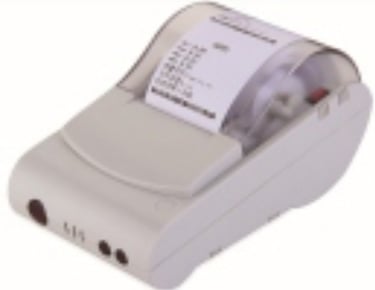

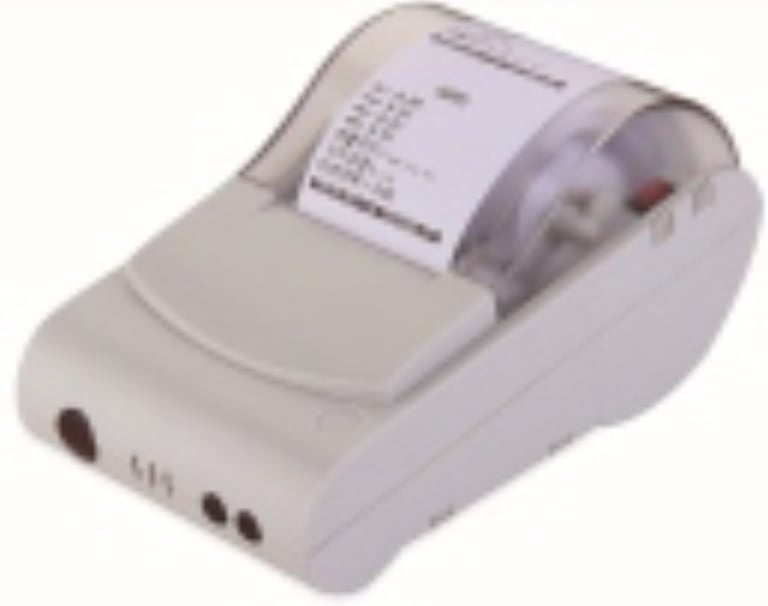

Micro printer : easy to carry, without computer can continuosly print out the measurement of various parameters, easy to save

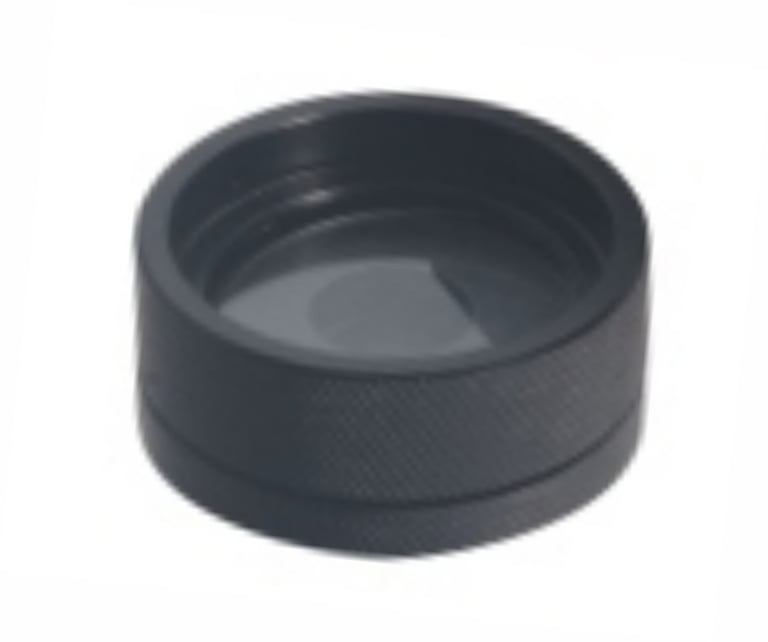

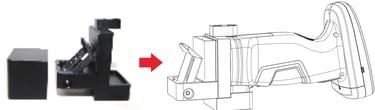

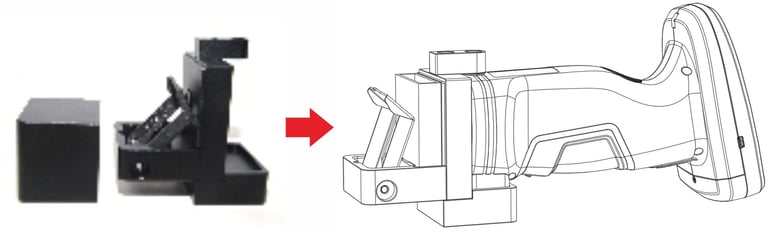

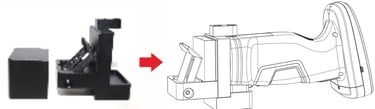

Multifunctional test components : can be used to test liquid reagents, sauces (such as ketchup, paint), powders (such as coffee), color masterbatches, etc

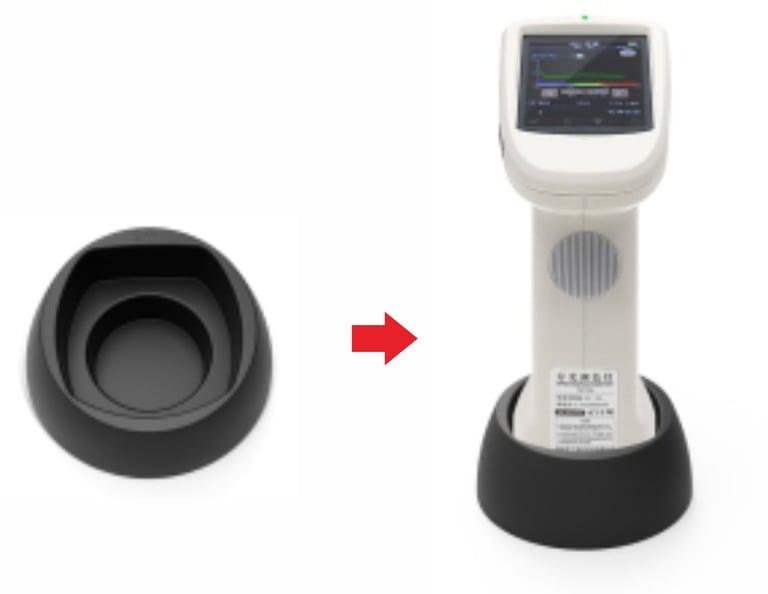

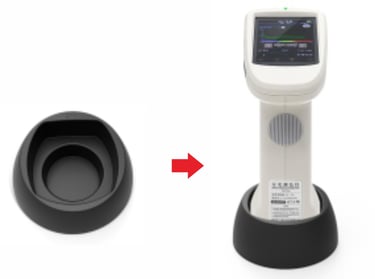

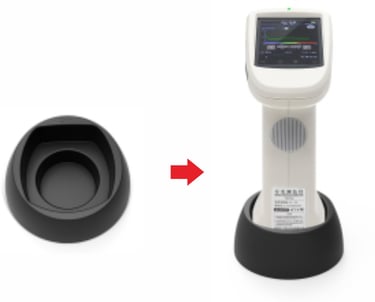

Place the base : easy to place quickly, take the machine to use, prevent dust from entering, save space, the base is stable, will not fall

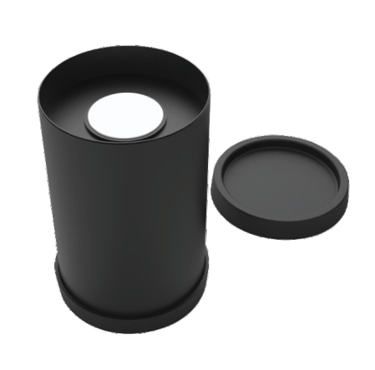

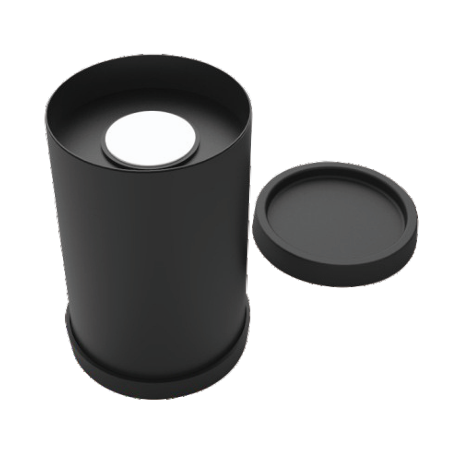

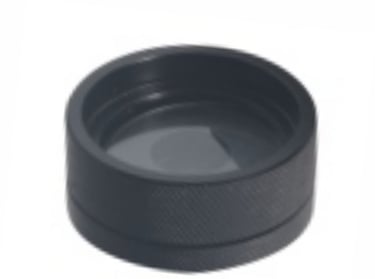

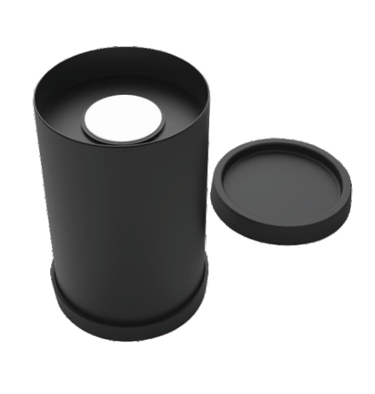

Powder test box : Easy to use, focusing on powdered target measurement
